Home>Products>International Conversion Adapters>Female JIC Swivel To Female BSPP Straight

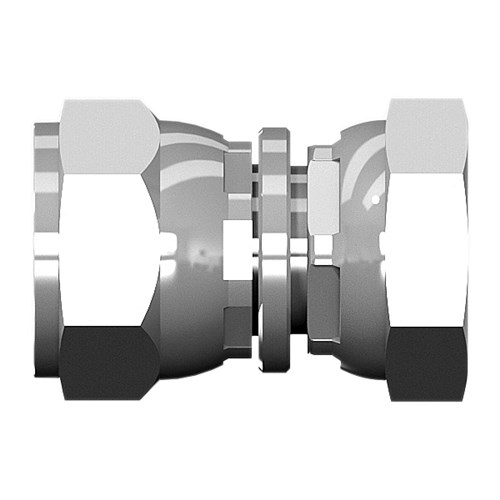

Female JIC Swivel To Female BSPP Straight

Share Print Page

You have not viewed any products recently.

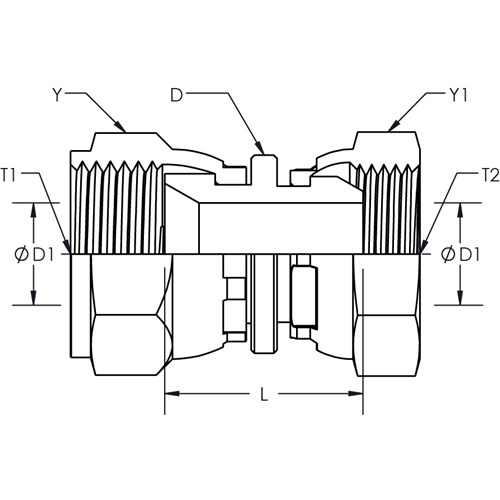

7023d

Enlarge

7023d

Attributes	Values
Product #	7023
AirWay	7023

These values are for reference only. Availability is not guaranteed.

Units

ENGLISH

METRIC

Part #	Y Hex	Y1 Hex	T1	D	D1	T2	D2	L
7023X04X04	0.563	0.748	7/16-20	0.551	0.172	1/4-19	0.172	0.898	Quote
7023X06X06	0.688	0.866	9/16-18	0.630	0.297	3/8-19	0.281	1.020	Quote
7023X08X08	0.875	1.063	3/4-16	0.984	0.391	1/2-14	0.391	1.205	Quote
7023X12X12	1.250	1.260	1-1/16-12	1.180	0.609	3/4-14	0.609	1.180	Quote
