Home>Products>International Conversion Adapters>Female JIC Swivel To Male BSPP Straight

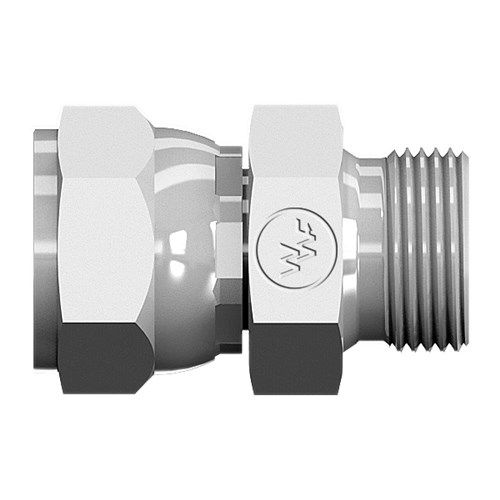

Female JIC Swivel To Male BSPP Straight

Share Print Page

You have not viewed any products recently.

7022d

Enlarge

7022d

Attributes	Values
Product #	7022
AirWay	7022

3D Renderings

These values are for reference only. Availability is not guaranteed.

Units

ENGLISH

METRIC

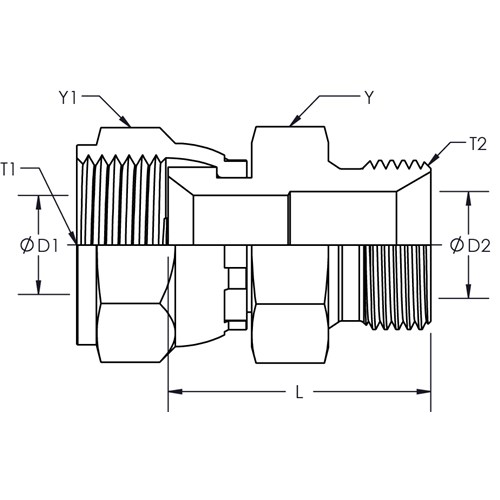

Part #	Y Hex	Y1 Hex	T1	D1	T2	D2	L
7022X04X04	0.748	0.563	7/16-20	0.172	1/4-19	0.185	1.024	Quote
7022X04X06	0.866	0.563	7/16-20	0.172	3/8-19	0.312	1.080	Quote
7022X06X04	0.748	0.688	9/16-18	0.297	1/4-19	0.185	1.100	Quote
7022X06X06	0.866	0.688	9/16-18	0.297	3/8-19	0.312	1.180	Quote
7022X08X08	1.063	0.875	3/4-16	0.391	1/2-14	0.438	1.380	Quote
7022X12X12	1.260	1.250	1-1/16-12	0.609	3/4-14	0.658	1.620	Quote
