Steel Pipe Fittings
>
Female Pipe to Female Pipe Swivel Branch Tee

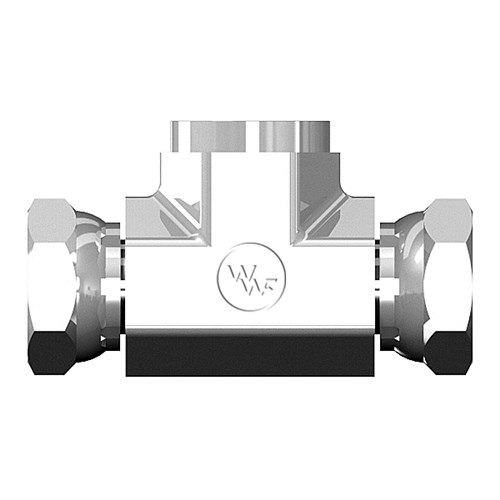

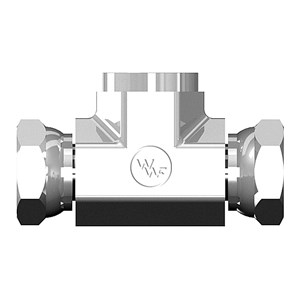

Female Pipe to Female Pipe Swivel Branch Tee
Share
Print Page
You have not viewed any products recently.
Enlarge
Attributes
Values
Product #
9456
Aeroquip
2253-[R]
AirWay
1602
3D Renderings
Full View
Half View
Section View
Units
ENGLISH
METRIC

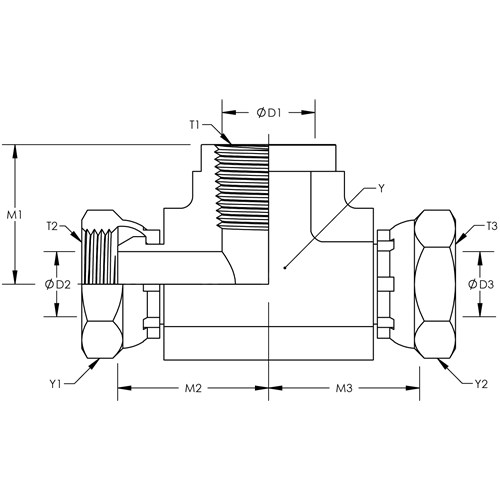

Part #
Y Hex
Y1/Y2 HEX
T1
M1
D1
D2/D3
T2/T3
M2/M3
9456X02X02X02
0.563
0.563
1/8-27
0.660
0.332
0.150
1/8-27
0.800
Quote
9456X04X04X04
0.750
0.688
1/4-18
0.880
0.438
0.220
1/4-18
0.990
Quote
9456X06X06X06
0.875
0.875
3/8-18
1.020
0.563
0.340
3/8-18
1.060
Quote
9456X08X08X08
1.063
1.000
1/2-14
1.230
0.703
0.460
1/2-14
1.240
Quote
9456X12X08X08
1.313
1.000
3/4-14
1.360
0.906
0.460
1/2-14
1.470
Quote
9456X16X16X16
1.625
1.500
1-11-1/2
1.620
1.141
0.831
1-11-1/2
1.730
Quote
9456X20X20X20
1.875
1.875
1-1/4-11-1/2
1.700
1.484
1.087
1-1/4-11-1/2
1.830
Quote
