Tube End Fabrication Fittings
>
JIC Braze Elbow Barstock
JIC Braze Elbow Barstock
Share
Print Page
You have not viewed any products recently.

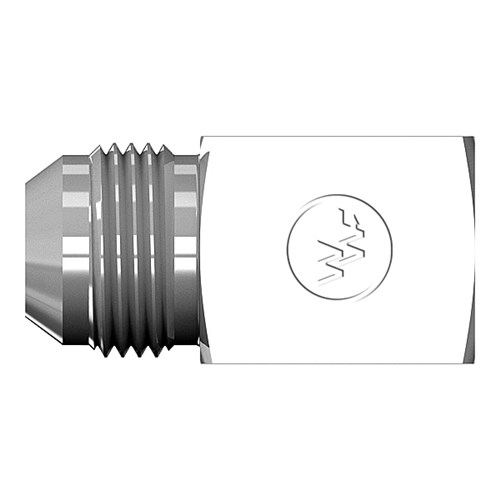

Enlarge
Attributes
Values
Product #
0500
AirWay
0500
3D Renderings
Full View
Half View
Section View
Units
ENGLISH
METRIC

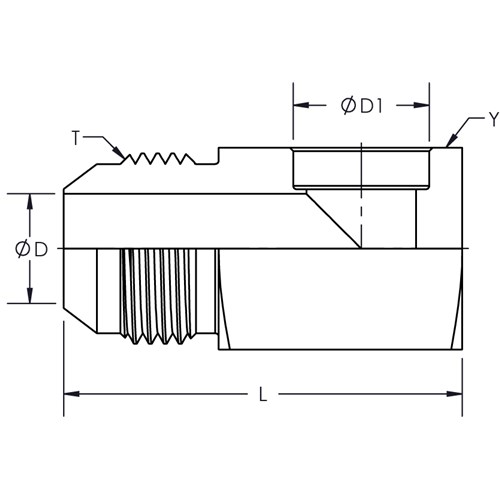

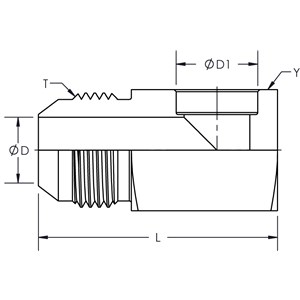

Part #
Y Hex
T1
D
D1
L
0500X04X04
0.500
7/16-20
0.172
0.256
1.140
Quote
0500X06X06
0.625
9/16-18
0.297
0.381
1.375
Quote
0500X08X08
0.812
3/4-16
0.391
0.506
1.656
Quote
0500X10X10
0.937
7/8-14
0.484
0.631
1.922
Quote
0500X12X12
1.125
1-1/16-12
0.609
0.757
2.219
Quote
0500X16X16
1.375
1-5/16-16
0.844
1.007
2.500
Quote
