Home>Products>Steel Flange Fittings>JIC Flange 45° Elbow Code 62

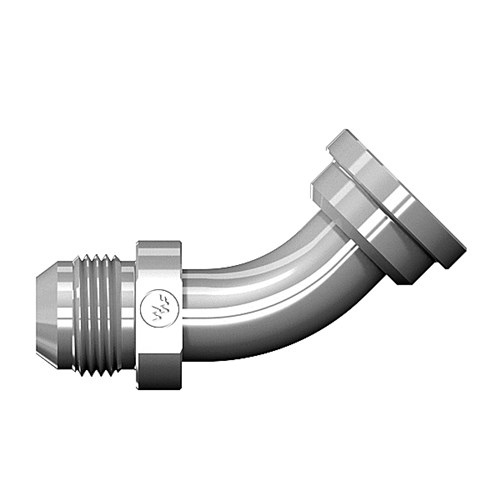

JIC Flange 45° Elbow Code 62

Share Print Page

You have not viewed any products recently.

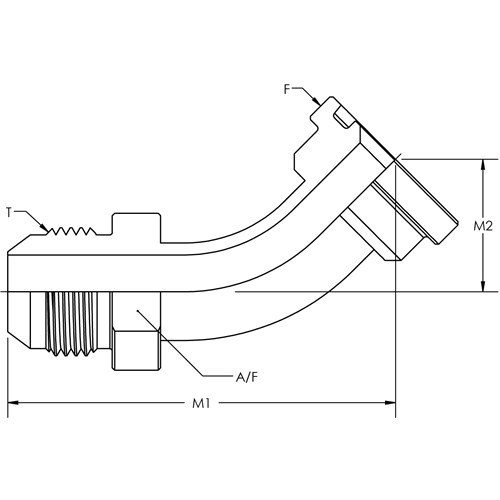

1803d

Enlarge

1803d

Attributes	Values
Product #	1803
AirWay	1803

3D Renderings

These values are for reference only. Availability is not guaranteed.

Units

ENGLISH

METRIC

Part #	Y Hex	T	M1	M2	F
1803X12X12	1.250	1-1/16-12	3.310	1.140	1.625	Quote
1803X16X16	1.375	1-5/16-12	3.860	1.380	1.875	Quote
1803X20X20	1.688	1-5/8-12	4.530	1.650	2.125	Quote
1803X24X24	2.000	1-7/8-12	5.160	1.930	2.500	Quote
