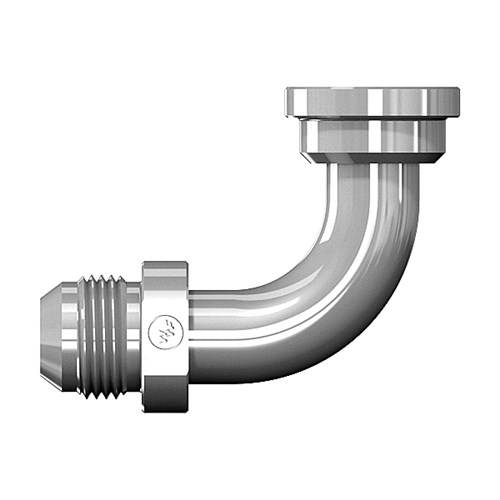

JIC Flange 90° Elbow Code 61

Share Print Page

You have not viewed any products recently.

1704d

Enlarge

1704d

Attributes	Values
Product #	1704
AirWay	1704

3D Renderings

These values are for reference only. Availability is not guaranteed.

Units

ENGLISH

METRIC

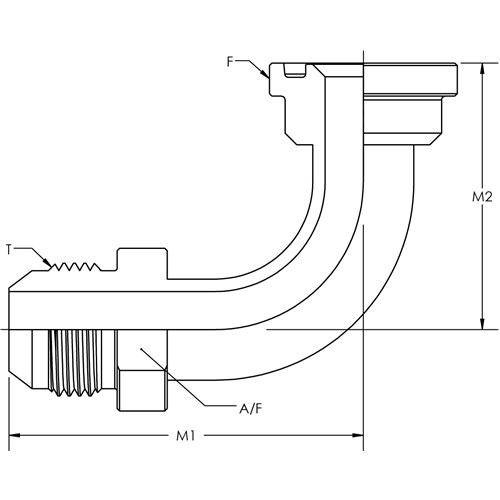

Part #	Y Hex	T	M1	M2	F
1704X12X12	1.125	1-1/16-12	2.835	2.125	1.500	Quote
1704X12X16	1.125	1-1/16-12	2.835	2.125	1.750	Quote
1704X16X16	1.375	1-5/16-12	3.385	2.600	1.750	Quote
1704X20X20	1.688	1-5/8-12	3.980	3.030	2.000	Quote
1704X24X24	2.000	1-7/8-12	4.570	3.660	2.375	Quote
