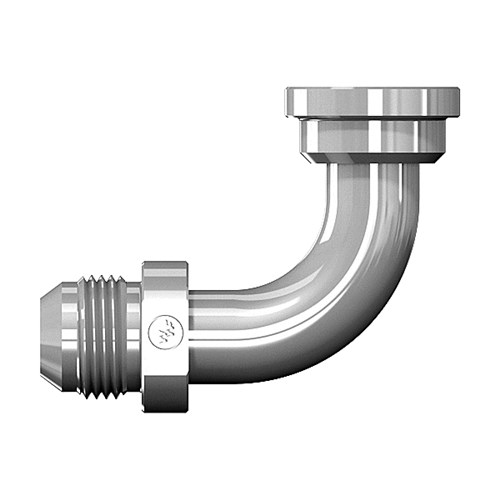

JIC Flange 90° Elbow Code 62

Share Print Page

You have not viewed any products recently.

1804d

Enlarge

1804d

Attributes	Values
Product #	1804
AirWay	1804

3D Renderings

These values are for reference only. Availability is not guaranteed.

Units

ENGLISH

METRIC

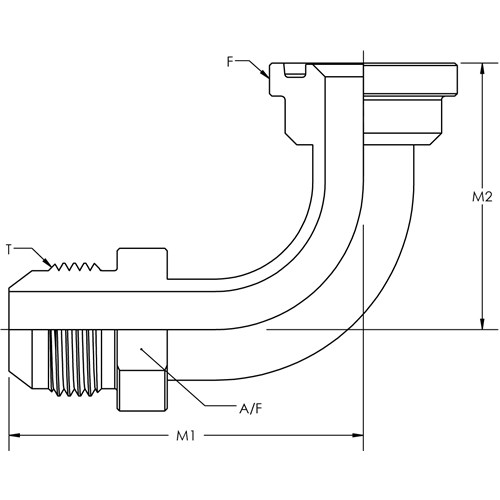

Part #	Y Hex	T	M1	M2	F
1804X12X12	1.125	1-1/16-12	2.835	2.280	1.625	Quote
1804X16X12	1.375	1-5/16-12	2.930	2.280	1.625	Quote
1804X16X16	1.375	1-5/16-12	3.390	2.875	1.875	Quote
1804X20X20	1.688	1-5/8-12	3.980	3.465	2.125	Quote
