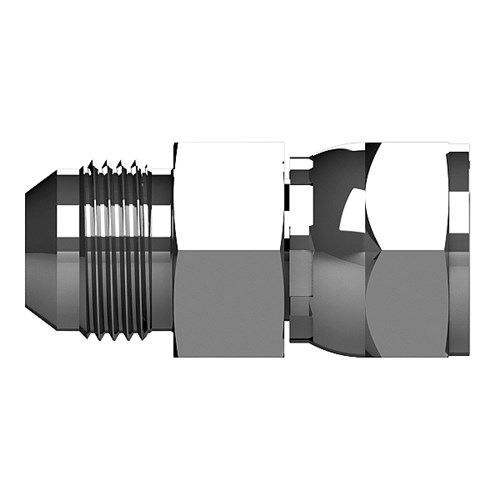

JIC Gauge Port Branch Tee

Share Print Page

You have not viewed any products recently.

6564d

Enlarge

6564d

Attributes	Values
Product #	6564
AirWay	6564

These values are for reference only. Availability is not guaranteed.

Units

ENGLISH

METRIC

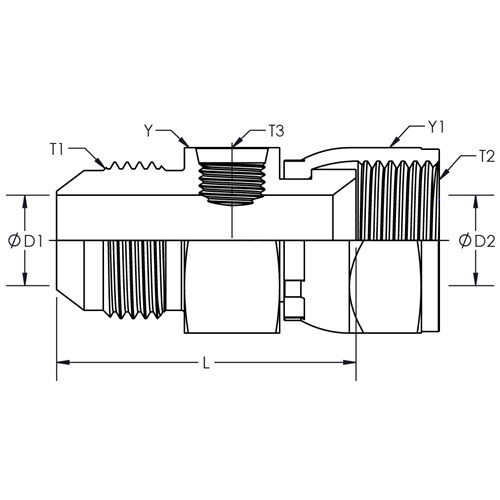

Part #	Y Hex	Y1 Hex	T1	D1	T2	D2	T3	L
6564x04x04x04	1.063	0.562	7/16-20	0.172	7/16-20	0.172	7/16-20	1.480	Quote
6564x06x06x04	1.063	0.687	9/16-18	0.297	9/16-18	0.297	7/16-20	1.571	Quote
6564x08x08x04	1.063	0.875	3/4-16	0.391	3/4-16	0.391	7/16-20	1.758	Quote
6564x10x10x04	1.125	1.000	7/8-14	0.484	7/8-14	0.484	7/16-20	1.902	Quote
6564x12x12x04	1.250	1.250	1-1/16-12	0.609	1-1/16-12	0.609	7/16-20	2.020	Quote
6564x16x16x04	1.500	1.500	1-5/16-12	0.844	1-5/16-12	0.844	7/16-20	2.250	Quote
6564x20x20x04	1.750	2.000	1-5/8-12	1.078	1-5/8-12	1.078	7/16-20	2.441	Quote
6564x24x24x04	2.125	2.250	1-7/8-12	1.311	1-7/8-12	1.311	7/16-20	2.500	Quote
