Home>Products>Steel O Ring Face Seal Fittings>Male Branch Tee

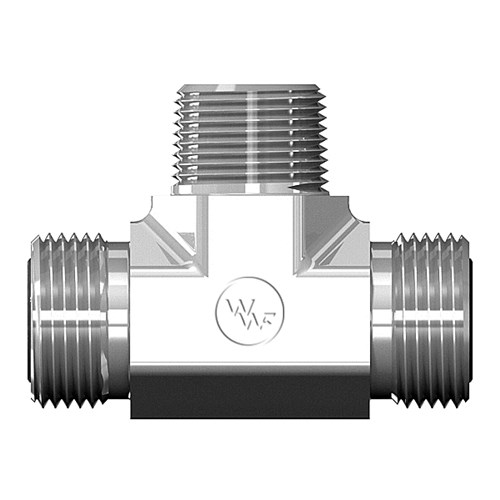

Male Branch Tee

Share Print Page

You have not viewed any products recently.

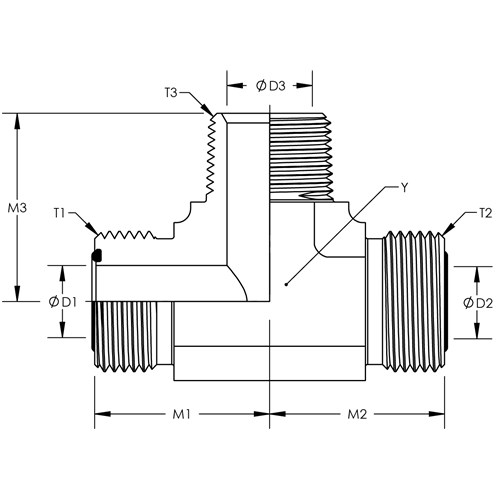

4605d

Enlarge

4605d

Attributes	Values
Product #	4605
Aeroquip	FF2001T
Parker	SLO
AirWay	FS2601
SAE	520425

These values are for reference only. Availability is not guaranteed.

Units

ENGLISH

METRIC

Part #	Y Hex	T1	M1	D1	T2	M2	D2	T3	M3	D3
4605X04X04X04	0.563	9/16-18	0.846	0.177	9/16-18	0.846	0.177	1/4-18	1.090	0.281	Quote
4605X06X06X04	0.669	11/16-16	0.984	0.256	11/16-16	0.984	0.256	1/4-18	1.090	0.281	Quote
4605X06X06X06	0.750	11/16-16	0.984	0.256	11/16-16	0.984	0.256	3/8-18	1.220	0.406	Quote
4605X08X08X06	0.750	13/16-16	1.102	0.374	13/16-16	1.102	0.374	3/8-18	1.220	0.406	Quote
4605X08X08X08	0.875	13/16-16	1.102	0.374	13/16-16	1.102	0.374	1/2-14	1.470	0.531	Quote
4605X12X12X12	1.188	1-3/16-12	1.476	0.610	1-3/16-12	1.476	0.610	3/4-14	1.590	0.719	Quote
4605X16X16X16	1.438	1-7/16-12	1.634	0.807	1-7/16-12	1.634	0.807	1-11-1/2	1.970	0.938	Quote
4605X20X20X20	1.625	1-11/16-12	1.752	1.024	1-11/16-12	1.752	1.024	1-1/4-11-1/2	2.380	1.250	Quote
