Male Braze 90° Elbow
Male Braze 90° Elbow
Share
Print Page
You have not viewed any products recently.
Enlarge
Attributes
Values
Product #
4514
AirWay
4514
3D Renderings
Full View
Half View
Section View
Units
ENGLISH
METRIC

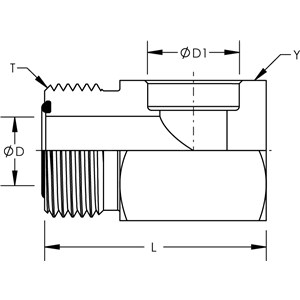

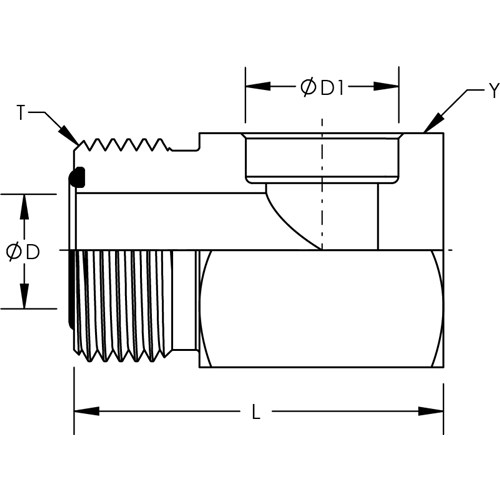

Part #
Y Hex
T
D
D1
L
4514X06X06
0.750
11/16-16
0.264
0.379
1.437
Quote
4514X08X10
1.250
0.374
0.630
1.766
Quote
4514X10X10
1.312
1-14
0.484
0.630
1.860
Quote
4514X16X16
1.875
1-7/16-12
0.807
1.003
2.470
Quote
