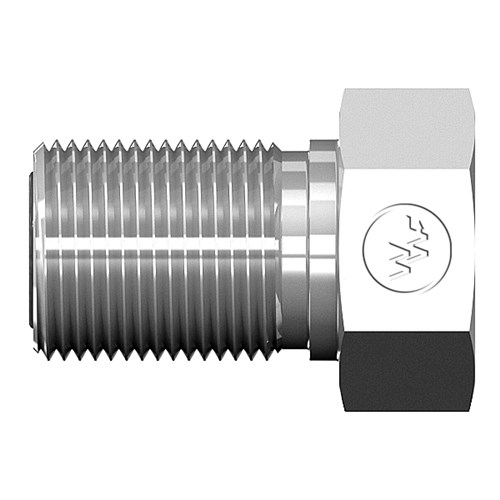

Male Braze Bulkhead Connector - Metric Hex
Male Braze Bulkhead Connector - Metric Hex
Share
Print Page
You have not viewed any products recently.
Enlarge
Attributes
Values
Product #
4324MH
AirWay
MFS0406
3D Renderings
Full View
Half View
Section View
Units
ENGLISH
METRIC

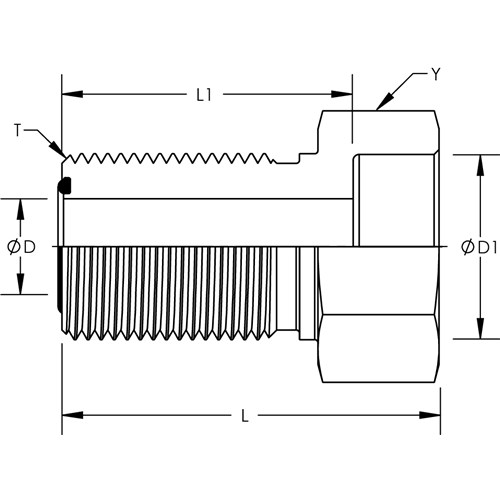

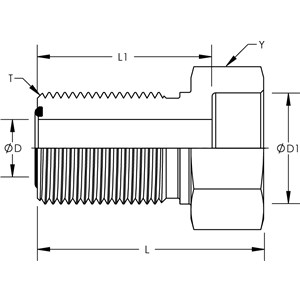

Part #
Y Hex
T
D
D1
L
L1
4324X06X06MH
1.063
11/16-16
0.256
0.381
1.720
1.468
Quote
4324X08X08MH
1.181
13/16-16
0.374
0.506
1.940
1.560
Quote
4324X16X16MH
1.811
1-7/16-12
0.807
1.007
2.429
1.929
Quote
