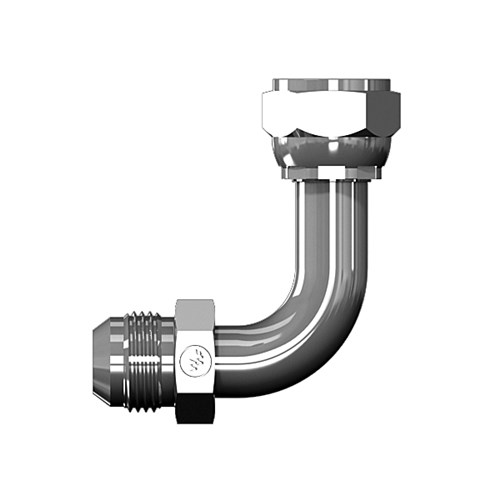

Male JIC to Female JIC Swivel Swept Bent tube 90° elbow

Share Print Page

You have not viewed any products recently.

6701

Enlarge

6701

Attributes	Values
Product #	6701
AirWay	6701

These values are for reference only. Availability is not guaranteed.

Units

ENGLISH

METRIC

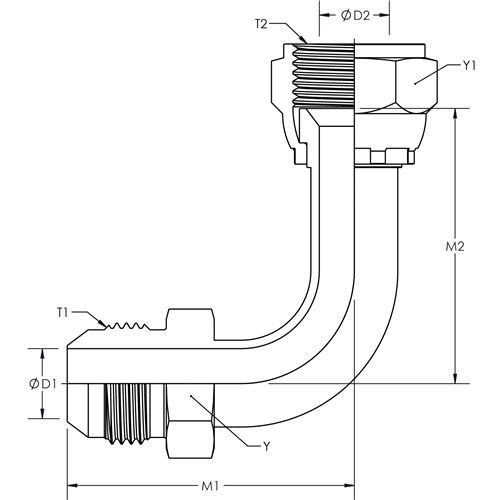

Part #	Y Hex	Y1 Hex	T1	M1	D1	T2	M2	D2
6701x04x04	0.500	0.563	7/16-20	1.250	0.172	7/16-20	1.090	0.172	Quote
6701x06x06	0.625	0.688	9/16-18	1.350	0.297	9/16-18	1.220	0.297	Quote
6701x08x08	0.812	0.875	3/4-16	1.770	0.391	3/4-16	1.520	0.391	Quote
6701x10x10	0.937	1.000	7/8-14	1.940	0.484	7/8-14	1.800	0.484	Quote
6701x12x12	1.125	1.250	1-1/16-12	2.500	0.609	1-1/16-12	2.400	0.609	Quote
6701x16x16	1.375	1.500	1-5/16-12	3.100	0.844	1-5/16-12	3.150	0.844	Quote
