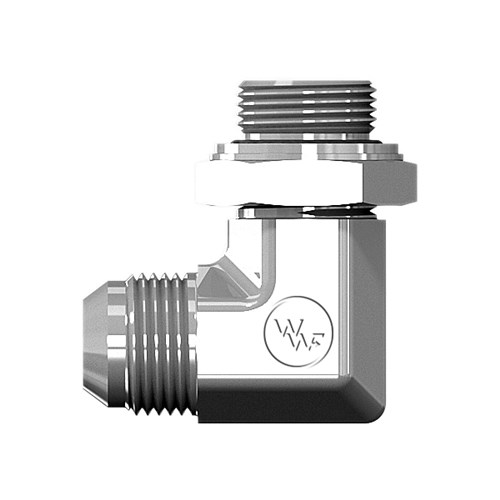

Male JIC To Male BSPP 90° Elbow

Share Print Page

You have not viewed any products recently.

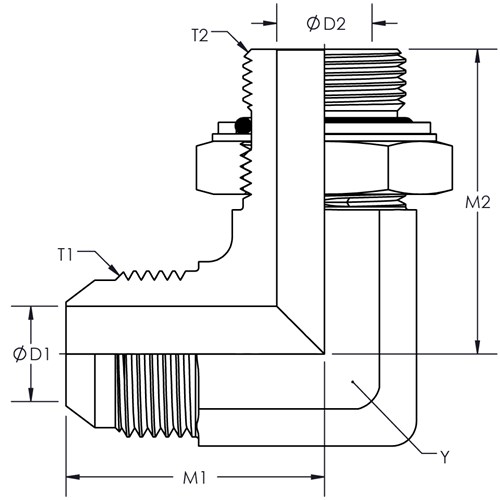

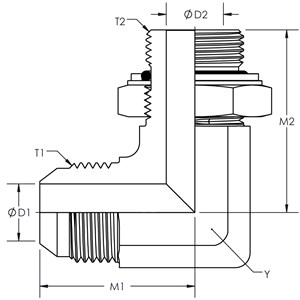

7202d

Enlarge

7202d

Attributes	Values
Product #	7202
Parker	C4OMX
AirWay	7202

These values are for reference only. Availability is not guaranteed.

Units

ENGLISH

METRIC

Part #	Y Hex	T1	M1	D1	T2	M2	D2	I.D.	W
7202X04X02	0.472	7/16-20	0.886	0.172	1/8-28	1.043	0.172	0.000	0.000	Quote
7202X04X04	0.551	7/16-20	0.933	0.172	1/4-19	1.260	0.297	0.000	0.000	Quote
7202X05X04	0.551	1/2-20	0.945	0.236	1/4-19	1.260	0.297	0.000	0.000	Quote
7202X06X04	0.551	9/16-18	1.063	0.297	1/4-19	1.260	0.297	0.000	0.000	Quote
7202X06X06	0.748	9/16-18	1.150	0.297	3/8-19	1.460	0.391	0.000	0.000	Quote
7202X06X08	0.866	9/16-18	1.230	0.297	1/2-14	1.695	0.484	0.000	0.000	Quote
7202X08X06	0.748	3/4-16	1.260	0.391	3/8-19	1.460	0.609	0.000	0.000	Quote
7202X08X08	0.866	3/4-16	1.340	0.391	1/2-14	1.695	0.484	0.000	0.000	Quote
7202X10X12	1.063	7/8-14	1.535	0.484	3/4-14	1.950	0.609	0.000	0.000	Quote
7202X12X08	1.063	1-1/16-12	1.655	0.609	1/2-14	1.950	0.484	0.000	0.000	Quote
7202X12X12	1.063	1-1/16-12	1.655	0.609	3/4-14	1.950	0.609	0.000	0.000	Quote
7202X12X16	1.312	1-1/16-12	1.760	0.609	1-11	2.050	0.846	1.700	0.118	Quote
