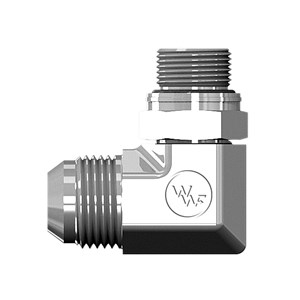

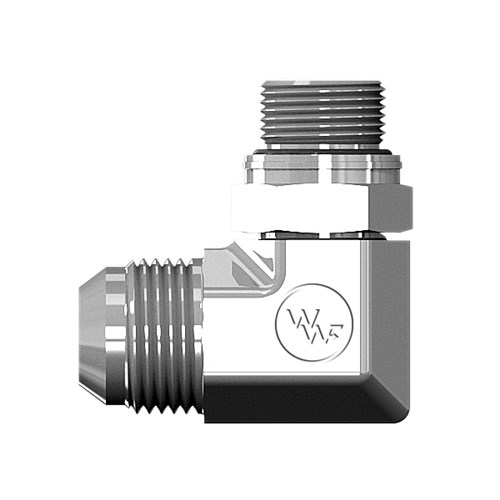

Male JIC To Male Metric ORB 90° Elbow

Share Print Page

You have not viewed any products recently.

7205Md

Enlarge

7205Md

Attributes	Values
Product #	7205M
AirWay	7205

These values are for reference only. Availability is not guaranteed.

Units

ENGLISH

METRIC

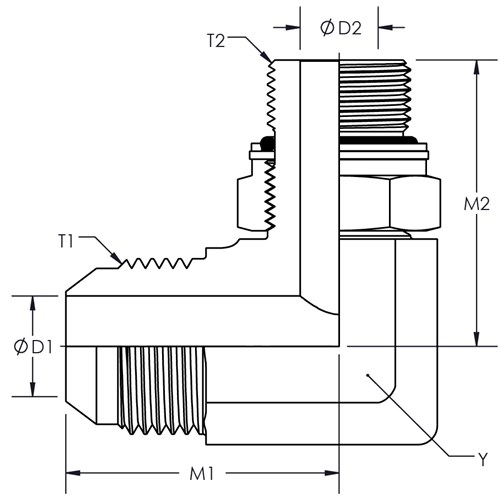

Part #	Y Hex	T1	M1	D1	T2	M2	D2
7205X04X10M	0.472	7/16-20	0.886	0.172	M10X1.0	0.000	0.118	Quote
7205X04X12M	0.551	7/16-20	1.050	0.172	M12X1.5	0.000	0.157	Quote
7205X04X14M	0.551	7/16-20	1.050	0.172	M14X1.5	0.000	0.236	Quote
7205X06X12M	0.551	9/16-18	1.073	0.297	M12X1.5	0.000	0.157	Quote
7205X06X14M	0.551	9/16-18	1.073	0.297	M14X1.5	1.000	0.236	Quote
7205X06X16M	0.748	9/16-18	1.150	0.297	M16X1.5	1.120	0.276	Quote
7205X08X16M	0.748	3/4-16	1.260	0.391	M16X1.5	1.280	0.276	Quote
7205X08X18M	0.748	3/4-16	1.260	0.391	M18X1.5	1.145	0.354	Quote
7205X10X18M	0.866	7/8-14	1.455	0.484	M18X1.5	1.280	0.354	Quote
7205X10X22M	0.866	7/8-14	1.455	0.484	M22X1.5	1.435	0.472	Quote
7205X12X22M	1.063	1-1/16-12	1.655	0.609	M22X1.5	1.435	0.472	Quote
7205X12X27M	1.063	1-1/16-12	1.655	0.609	M27X2.0	1.450	0.590	Quote
