Home>Products>Steel 37 Flare (JIC) Fittings>Male Pipe to Female 37° JIC Swivel

Male Pipe to Female 37° JIC Swivel

Share Print Page

You have not viewed any products recently.

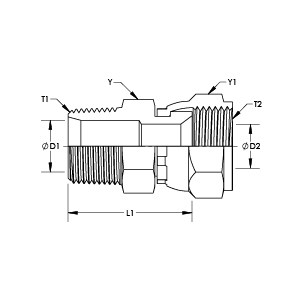

9100d

Enlarge

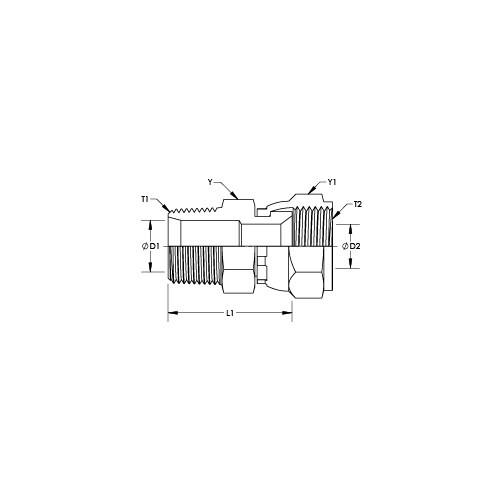

9100d

Attributes	Values
Product #	9100
Gates	FJX-MP
Aeroquip	2018
Parker	F6X
AirWay	6505

These values are for reference only. Availability is not guaranteed.

Units

ENGLISH

METRIC

Part #	Y Hex	Y1 Hex	T1	D1	T2	D2	L1
9100X02X04	0.500	0.563	1/8-27	0.188	7/16-20	0.172	0.990	Quote
9100X04X04	0.563	0.563	1/4-18	0.281	7/16-20	0.172	1.200	Quote
9100X04X05	0.563	0.625	1/4-18	0.281	1/2-20	0.234	1.260	Quote
9100X04X06	0.563	0.688	1/4-18	0.281	9/16-18	0.297	1.300	Quote
9100X06X06	0.750	0.688	3/8-18	0.406	9/16-18	0.297	1.260	Quote
9100X06X08	0.875	0.875	3/8-18	0.406	3/4-16	0.391	1.310	Quote
9100X08X08	0.875	0.875	1/2-14	0.531	3/4-16	0.391	1.560	Quote
9100X08X10	1.000	1.000	1/2-14	0.531	7/8-14	0.484	1.600	Quote
9100X08X12	1.000	1.250	1/2-14	0.531	1-1/16-12	0.609	1.580	Quote
9100X12X12	1.125	1.250	3/4-14	0.719	1-1/16-12	0.609	1.720	Quote
9100X16X16	1.375	1.500	1-11-1/2	0.938	1-5/16-12	0.844	1.970	Quote
9100X20X20	1.688	2.000	1-1/4-11-1/2	1.250	1-5/8-12	1.078	2.210	Quote
9100X24X24	2.000	2.250	1-1/2-11-1/2	1.500	1-7/8-12	1.313	2.990	Quote
