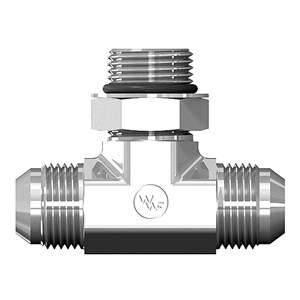

Straight Thread Branch Tee

Share Print Page

You have not viewed any products recently.

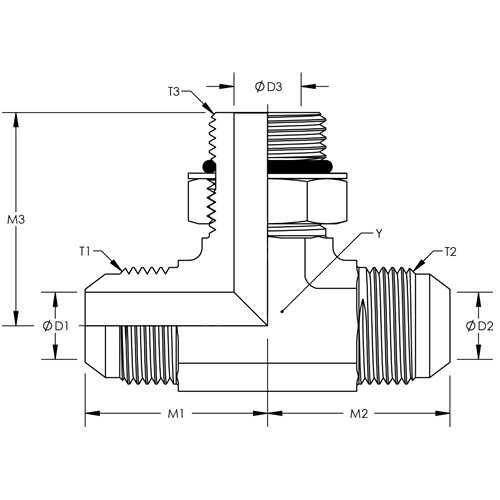

F5715d

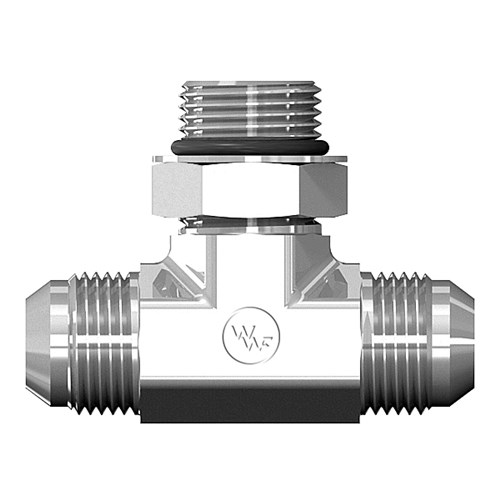

Enlarge

F5715d

Attributes	Values
Product #	F5715
Gates	MJ-MJ-MB
Aeroquip	203003-[R]
Parker	S5OX
AirWay	6803
SAE	070429
Stainless Part No	6803-SS

These values are for reference only. Availability is not guaranteed.

Units

ENGLISH

METRIC

Part #	Y Hex	T1	M1	D1	T2	M2	D2	T3	M3	D3
F5715X02X02X02	0.438	5/16-24	0.770	0.063	5/16-24	0.770	0.063	5/16-24	0.940	0.063	Quote
F5715X04X04X03	0.438	7/16-20	0.890	0.172	7/16-20	0.890	0.172	3/8-24	0.920	0.125	Quote
F5715X04X04X04	0.438	7/16-20	0.890	0.172	7/16-20	0.890	0.172	7/16-20	1.030	0.172	Quote
F5715X04X04X06	0.563	7/16-20	1.050	0.172	7/16-20	1.050	0.172	9/16-18	1.250	0.297	Quote
F5715X05X05X05	0.563	1/2-20	0.950	0.234	1/2-20	0.950	0.234	1/2-20	1.130	0.234	Quote
F5715X06X06X04	0.563	9/16-18	1.060	0.297	9/16-18	1.060	0.297	7/16-20	1.190	0.172	Quote
F5715X06X06X06	0.563	9/16-18	1.060	0.297	9/16-18	1.060	0.297	9/16-18	1.250	0.297	Quote
F5715X06X06X08	0.750	9/16-18	1.140	0.297	9/16-18	1.140	0.297	3/4-16	1.450	0.391	Quote
F5715X08X08X06	0.750	3/4-16	1.250	0.391	3/4-16	1.250	0.391	9/16-18	1.320	0.297	Quote
F5715X08X08X08	0.750	3/4-16	1.250	0.391	3/4-16	1.250	0.391	3/4-16	1.450	0.391	Quote
F5715X08X08X10	0.875	3/4-16	1.330	0.391	3/4-16	1.330	0.391	7/8-14	1.700	0.484	Quote
F5715X10X10X08	0.875	7/8-14	1.450	0.484	7/8-14	1.450	0.484	3/4-16	1.540	0.391	Quote
F5715X10X10X10	0.875	7/8-14	1.450	0.484	7/8-14	1.450	0.484	7/8-14	1.700	0.484	Quote
F5715X12X10X12	1.063	1-1/16-12	1.660	0.484	7/8-14	1.540	0.484	1-1/16-12	1.940	0.609	Quote
F5715X12X12X08	1.063	1-1/16-12	1.660	0.609	1-1/16-12	1.660	0.609	3/4-16	1.620	0.391	Quote
F5715X12X12X10	1.063	1-1/16-12	1.660	0.609	1-1/16-12	1.660	0.609	7/8-14	1.780	0.484	Quote
F5715X12X12X12	1.063	1-1/16-12	1.660	0.609	1-1/16-12	1.660	0.609	1-1/16-12	1.940	0.609	Quote
F5715X12X12X16	1.313	1-1/16-12	1.760	0.609	1-1/16-12	1.760	0.609	1-5/16-12	2.050	0.844	Quote
F5715X16X12X16	1.313	1-5/16-12	1.810	0.844	1-1/16-12	1.760	0.609	1-5/16-12	2.050	0.844	Quote
F5715X16X16X12	1.313	1-5/16-12	1.810	0.844	1-5/16-12	1.810	0.844	1-1/16-12	2.050	0.609	Quote
F5715X16X16X16	1.313	1-5/16-12	1.810	0.844	1-5/16-12	1.810	0.844	1-5/16-12	2.050	0.844	Quote
F5715X20X20X20	1.625	1-5/8-12	2.060	1.078	1-5/8-12	2.060	1.078	1-5/8-12	2.250	1.078	Quote
F5715X24X24X24	1.875	1-7/8-12	2.330	1.313	1-7/8-12	2.330	1.313	1-7/8-12	2.390	1.313	Quote
