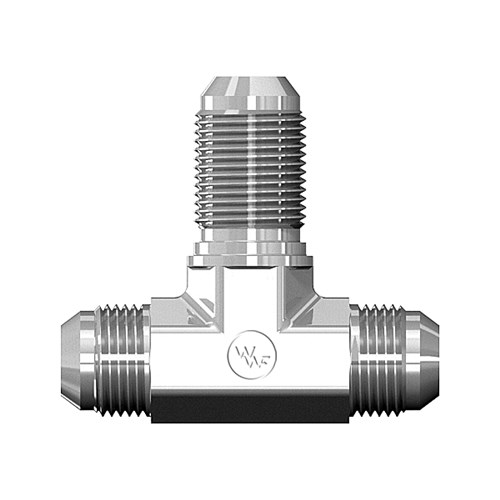

Bulkhead Tube Tee

Share Print Page

You have not viewed any products recently.

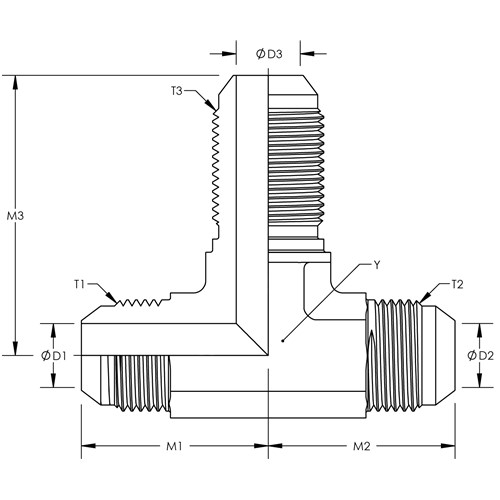

F5725d

Enlarge

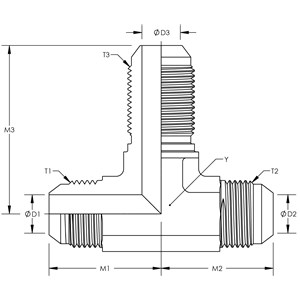

F5725d

Attributes	Values
Product #	F5725
Gates	MJ-MJ-MJBKHD
Aeroquip	203002-1
Parker	WJTX
AirWay	2703
SAE	070959
Stainless Part No	2703-SS

These values are for reference only. Availability is not guaranteed.

Units

ENGLISH

METRIC

Part #	Y Hex	T1	M1	D1	T2	M2	D2	T3	M3	D3
F5725X03X03X03	0.438	3/8-24	0.940	0.125	3/8-24	0.940	0.125	3/8-24	1.500	0.125	Quote
F5725X04X04X04	0.438	7/16-20	0.970	0.172	7/16-20	0.970	0.172	7/16-20	1.590	0.172	Quote
F5725X04X04X06	0.563	7/16-20	1.080	0.172	7/16-20	1.080	0.172	9/16-18	1.810	0.297	Quote
F5725X05X05X05	0.563	1/2-20	1.060	0.234	1/2-20	1.060	0.234	1/2-20	1.720	0.234	Quote
F5725X06X06X06	0.563	9/16-18	1.090	0.297	9/16-18	1.090	0.297	9/16-18	1.810	0.297	Quote
F5725X08X08X08	0.750	3/4-16	1.360	0.391	3/4-16	1.360	0.391	3/4-16	2.110	0.391	Quote
F5725X10X10X10	0.875	7/8-14	1.560	0.484	7/8-14	1.560	0.484	7/8-14	2.390	0.484	Quote
F5725X12X12X12	1.063	1-1/16-12	1.780	0.609	1-1/16-12	1.780	0.609	1-1/16-12	2.670	0.609	Quote
F5725X16X16X16	1.313	1-5/16-12	1.940	0.844	1-5/16-12	1.940	0.844	1-5/16-12	2.800	0.844	Quote
