Home>Products>Steel O Ring Face Seal Fittings>Stud Straight Long

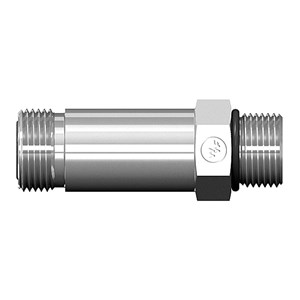

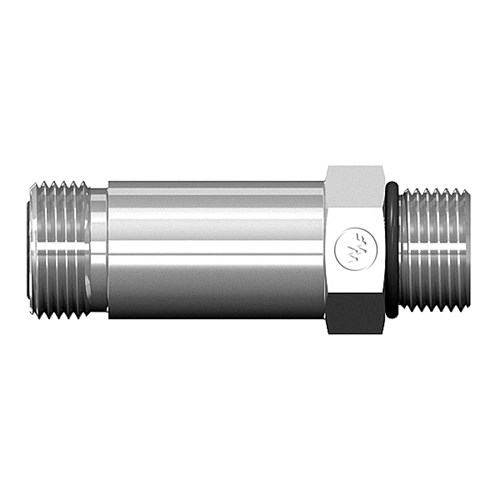

Stud Straight Long

Share Print Page

You have not viewed any products recently.

4316d

Enlarge

4316d

Attributes	Values
Product #	4316
Gates	MFFOR-MBL
Aeroquip	FF1854T
Parker	FF5OLO
AirWay	FS6400-L
SAE	521720

These values are for reference only. Availability is not guaranteed.

Units

ENGLISH

METRIC

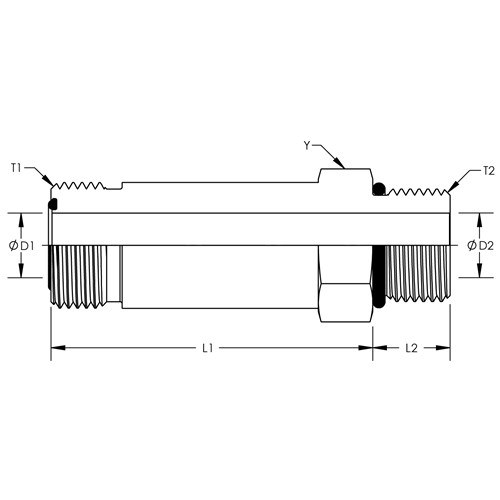

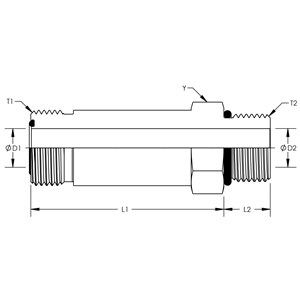

Part #	Y Hex	T1	D1	T2	D2	L1	L2
4316X04X04	0.625	9/16-18	0.177	7/16-20	0.177	1.634	0.433	Quote
4316X06X04	0.750	11/16-16	0.256	7/16-20	0.177	1.791	0.433	Quote
4316X06X06	0.750	11/16-16	0.256	9/16-18	0.295	1.791	0.472	Quote
4316X08X08	0.875	13/16-16	0.374	3/4-16	0.394	2.126	0.551	Quote
4316X10X10	1.063	1-14	0.492	7/8-14	0.492	2.500	0.630	Quote
4316X10X12	1.250	1-14	0.492	1-1/16-12	0.610	2.972	0.728	Quote
4316X12X12	1.250	1-3/16-12	0.610	1-1/16-12	0.610	3.031	0.728	Quote
4316X12X16	1.500	1-3/16-12	0.610	1-5/16-12	0.846	3.386	0.728	Quote
4316X16X12	1.500	1-7/16-12	0.807	1-1/16-12	0.610	3.405	0.728	Quote
4316X16X16	1.500	1-7/16-12	0.807	1-5/16-12	0.846	3.405	0.728	Quote
