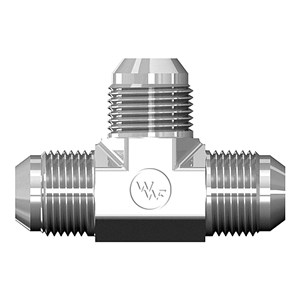

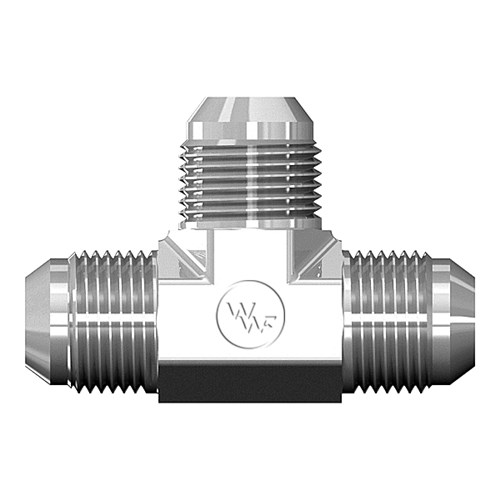

Union Tee Forged Stainless Steel

Share Print Page

You have not viewed any products recently.

2603SS

Enlarge

2603SS

Attributes	Values
Product #	2603SS
Gates	MJ-MJ-MJ
Aeroquip	2033
Parker	JTX
AirWay	2603SS
Material	Stainless Steel

These values are for reference only. Availability is not guaranteed.

Units

ENGLISH

METRIC

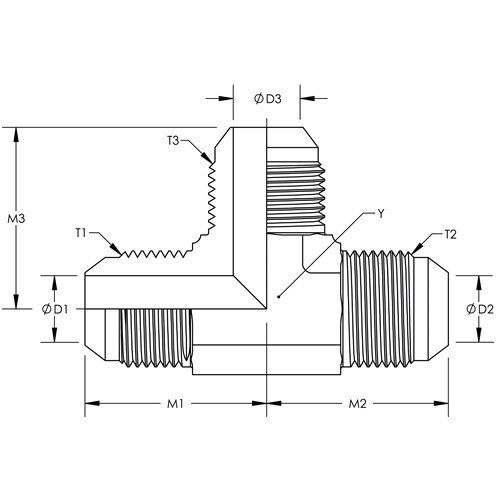

Part #	Y Hex	T1	M1	D1	T2	M2	D2	T3	M3	D3
2603X04X04X04SS	0.438	7/16-20	0.890	0.172	7/16-20	0.890	0.172	7/16-20	0.890	0.172	Quote
2603X06X06X06SS	0.563	9/16-18	1.060	0.297	9/16-18	1.060	0.297	9/16-18	1.060	0.297	Quote
2603X08X08X08SS	0.750	3/4-16	1.250	0.391	3/4-16	1.250	0.391	3/4-16	1.250	0.391	Quote
2603X10X10X10SS	0.875	7/8-14	1.450	0.484	7/8-14	1.450	0.484	7/8-14	1.450	0.484	Quote
2603X12X12X12SS	1.063	1-1/16-12	1.660	0.609	1-1/16-12	1.660	0.609	1-1/16-12	1.660	0.609	Quote
2603X16X16X16SS	1.313	1-5/16-12	1.810	0.844	1-5/16-12	1.810	0.844	1-5/16-12	1.810	0.844	Quote
