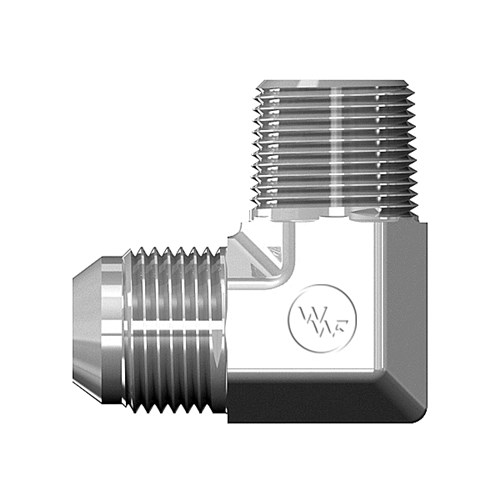

90° Male Elbow Stainless Steel

Share Print Page

You have not viewed any products recently.

F5405d

Enlarge

F5405d

Attributes	Values
Product #	2501SS
AirWay	2501SS
Material	Stainless Steel

These values are for reference only. Availability is not guaranteed.

Units

ENGLISH

METRIC

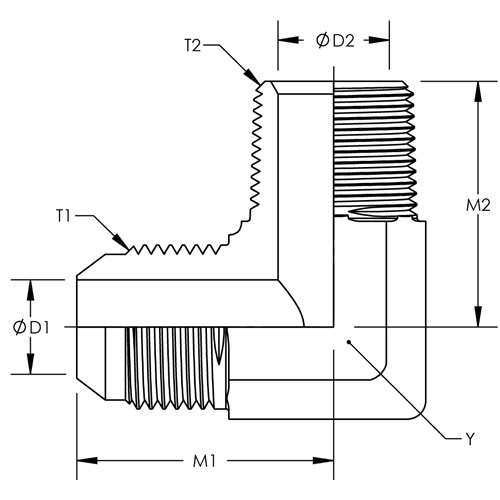

Part #	Y Hex	T1	M1	D1	T2	M2	D2
2501X03X02SS	0.438	3/8-24	0.830	0.125	1/8-27	0.720	0.188	Quote
2501X04X02SS	0.438	7/16-20	0.890	0.172	1/8-27	0.780	0.188	Quote
2501X04X04SS	0.563	7/16-20	1.050	0.172	1/4-18	1.090	0.281	Quote
2501X04X06SS	0.750	7/16-20	1.120	0.172	3/8-18	1.220	0.406	Quote
2501X04X08SS	0.875	7/16-20	1.210	0.172	1/2-14	1.470	0.531	Quote
2501X04X12SS	1.063	7/16-20	1.660	0.172	3/4-14	1.590	0.719	Quote
2501X06X02SS	0.563	9/16-18	1.060	0.297	1/8-27	0.900	0.188	Quote
2501X06X04SS	0.563	9/16-18	1.060	0.297	1/4-18	1.090	0.281	Quote
2501X06X06SS	0.750	9/16-18	1.140	0.297	3/8-18	1.220	0.406	Quote
2501X06X08SS	0.875	9/16-18	1.220	0.297	1/2-14	1.470	0.531	Quote
2501X08X04SS	0.750	3/4-16	1.250	0.391	1/4-18	1.220	0.281	Quote
2501X08X06SS	0.750	3/4-16	1.250	0.391	3/8-18	1.220	0.406	Quote
2501X08X08SS	0.875	3/4-16	1.330	0.391	1/2-14	1.470	0.531	Quote
2501X08X12SS	1.063	3/4-16	1.420	0.391	3/4-14	1.590	0.719	Quote
2501X10X08SS	0.875	7/8-14	1.450	0.484	1/2-14	1.470	0.531	Quote
2501X12X06SS	1.063	1-1/16-12	1.660	0.609	3/8-18	1.400	0.406	Quote
2501X12X08SS	1.063	1-1/16-12	1.660	0.609	1/2-14	1.590	0.531	Quote
2501X12X12SS	1.063	1-1/16-12	1.660	0.609	3/4-14	1.590	0.719	Quote
2501X12X16SS	1.313	1-1/16-12	1.760	0.609	1-11-1/2	1.970	0.938	Quote
2501X16X12SS	1.313	1-5/16-12	1.810	0.844	3/4-14	1.780	0.719	Quote
2501X16X16SS	1.313	1-5/16-12	1.810	0.844	1-11-1/2	1.970	0.938	Quote
2501X16X20SS	1.625	1-5/16-12	2.010	0.844	1-1/4-11-1/2	2.380	1.250	Quote
2501X20X16SS	1.625	1-5/8-12	2.060	1.078	1-11-1/2	2.350	0.938	Quote
2501X20X20SS	1.625	1-5/8-12	2.060	1.078	1-1/4-11-1/2	2.380	1.250	Quote
2501X24X20SS	1.875	1-7/8-12	2.330	1.313	1-1/4-11-1/2	2.610	1.250	Quote
2501X24X24SS	1.875	1-7/8-12	2.330	1.313	1-1/2-11-12	2.640	1.500	Quote
