Steel O Ring Face Seal Fittings
>

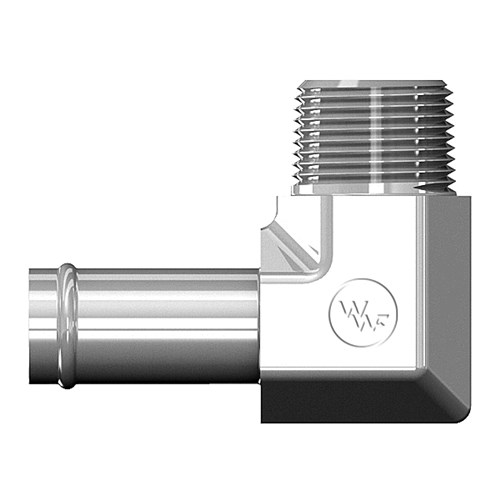

90° Male Pipe Hose Fitting
90° Male Pipe Hose Fitting
Share
Print Page
You have not viewed any products recently.
Enlarge
Attributes
Values
Product #
4501
Aeroquip
FF1162-[R]
AirWay
4501
SAE
431460
3D Renderings
Full View
Half View
Section View
Units
ENGLISH
METRIC

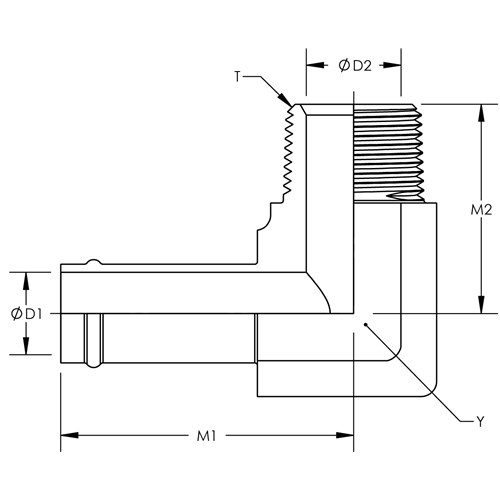

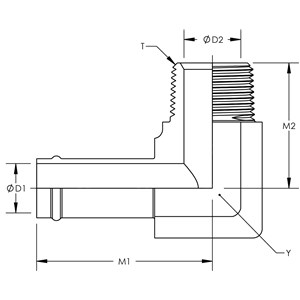

Part #
Y Hex
T
M1
D1
M2
D2
4501X06X08
0.938
1/2-14
2.125
0.295
1.469
0.531
Quote
4501X04X02
0.500
1/8-27
1.887
0.189
0.779
0.189
Quote
4501X04X04
0.563
1/4-18
1.955
0.189
1.090
0.275
Quote
4501X05X04
0.625
1/4-18
1.955
0.251
1.090
0.275
Quote
4501X06X04
0.625
1/4-18
1.955
0.295
1.090
0.275
Quote
4501X06X06
0.750
3/8-18
2.023
0.295
1.220
0.405
Quote
4501X08X06
0.813
3/8-18
2.057
0.405
1.220
0.405
Quote
4501X08X08
0.938
1/2-14
2.125
0.405
1.469
0.531
Quote
4501X08X12
1.125
3/4-14
2.228
0.405
1.590
0.720
Quote
4501X10X08
0.938
1/2-14
2.125
0.500
1.469
0.531
Quote
4501X10X12
1.125
3/4-14
2.228
0.500
1.590
0.720
Quote
4501X12X08
0.938
1/2-14
2.125
0.626
1.469
0.531
Quote
4501X12X12
1.125
3/4-14
2.228
0.626
1.590
0.720
Quote
4501X12X16
1.375
1-11-1/2
2.364
0.626
1.969
0.938
Quote
4501X16X12
1.125
3/4-14
2.228
0.842
1.590
0.720
Quote
4501X16X16
1.375
1-11-1/2
2.364
0.842
1.969
0.938
Quote
4501X20X20
1.750
1-1/4-11-1/2
2.569
1.094
2.381
1.248
Quote
