Steel 37 Flare (JIC) Fittings
>

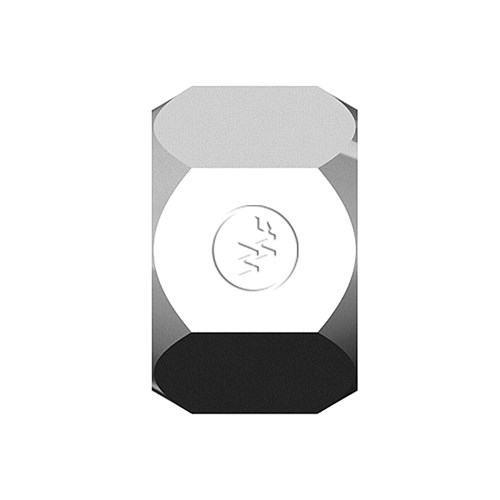

Cap
Cap
Share
Print Page
You have not viewed any products recently.
Enlarge
Attributes
Values
Product #
5129
Gates
FJ-CAP
Aeroquip
210292
Parker
FNTX
AirWay
0304-C
SAE
070112
Stainless Part No
0304-C-SS
3D Renderings
Full View
Half View
Section View
Units
ENGLISH
METRIC

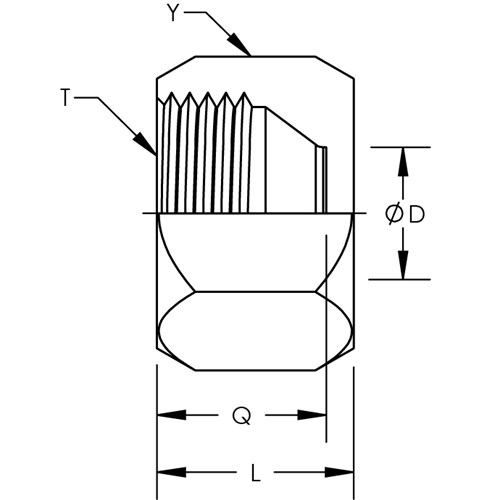

Part #
Y Hex
T
D
Q
L
5129X02
0.375
5/16-24
0.063
0.438
0.500
Quote
5129X03
0.438
3/8-24
0.125
0.500
0.563
Quote
5129X04CF
0.563
7/16-20
0.172
0.531
0.594
Quote
5129X05
0.625
1/2-20
0.234
0.547
0.609
Quote
5129X06CF
0.688
9/16-18
0.297
0.563
0.625
Quote
5129X08CF
0.875
3/4-16
0.391
0.625
0.750
Quote
5129X10CF
1.000
7/8-14
0.484
0.719
0.844
Quote
5129X12CF
1.250
1-1/16-12
0.609
0.781
0.906
Quote
5129X14
1.375
1-3/16-12
0.719
0.844
0.969
Quote
5129X16CF
1.500
1-5/16-12
0.844
0.859
1.016
Quote
5129X20CF
2.000
1-5/8-12
1.078
0.906
1.063
Quote
5129X24CF
2.250
1-7/8-12
1.313
1.031
1.188
Quote
5129X32CF
2.875
2-1/2-12
1.781
1.281
1.438
Quote
