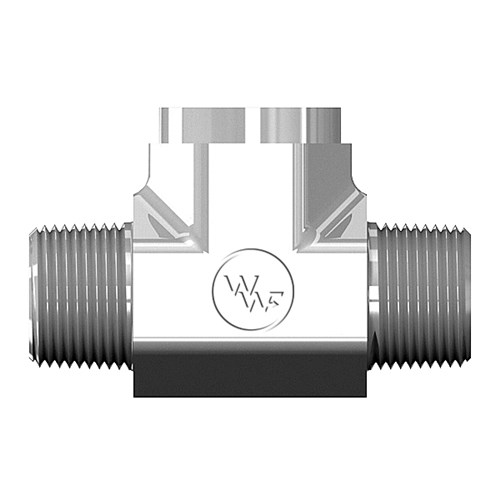

Female Branch Tee

Share Print Page

You have not viewed any products recently.

5601d

Enlarge

5601d

Attributes	Values
Product #	5601
Aeroquip	2256
AirWay	5601
Stainless Part No	5601-SS

These values are for reference only. Availability is not guaranteed.

Units

ENGLISH

METRIC

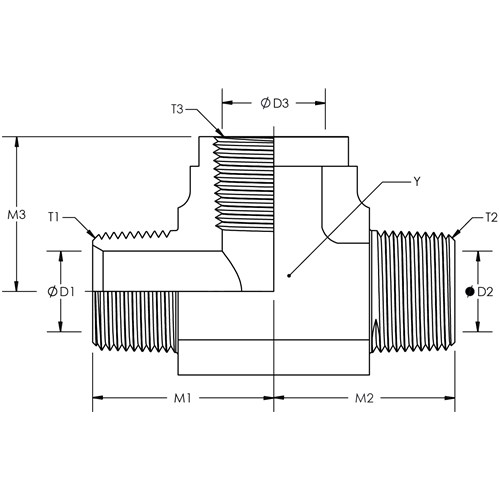

Part #	Y Hex	T1	M1	D1	T2	M2	D2	T3	M3	D3
5601x02x02x02	0.563	1/8-27	0.780	0.188	1/8-27	0.780	0.188	1/8-27	0.660	0.332	Quote
5601x04x04x04	0.750	1/4-18	1.090	0.281	1/4-18	1.090	0.281	1/4-18	0.880	0.438	Quote
5601x06x06x06	0.875	3/8-18	1.220	0.406	3/8-18	1.220	0.406	3/8-18	1.020	0.563	Quote
5601x08x08x08	1.063	1/2-14	1.470	0.531	1/2-14	1.470	0.531	1/2-14	1.230	0.703	Quote
5601x12x12x12	1.313	3/4-14	1.590	0.719	3/4-14	1.590	0.719	3/4-14	1.360	0.906	Quote
5601x16x16x16	1.625	1-11-1/2	1.970	0.938	1-11-1/2	1.970	0.938	1-11-1/2	1.620	1.141	Quote
5601x20x20x20	1.875	1-1/4-11-1/2	2.380	1.250	1-1/4-11-1/2	2.380	1.250	1-1/4-11-1/2	1.700	1.484	Quote
5601x24x24x24	2.562	1-1/2-11-1/2	2.640	1.500	1-1/2-11-1/2	2.640	1.500	1-1/2-11-1/2	2.080	1.744	Quote
