Flange Head Plug Code - 61
Flange Head Plug Code - 61
Share
Print Page
You have not viewed any products recently.
Enlarge
Attributes
Values
Product #
1724
Parker
P
AirWay
1724

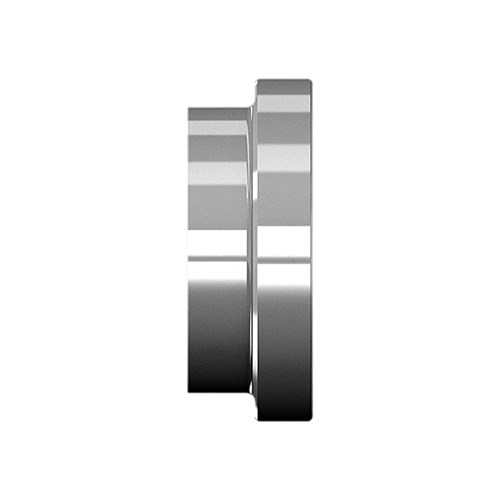

3D Renderings
Full View
Half View
Section View
Units
ENGLISH
METRIC

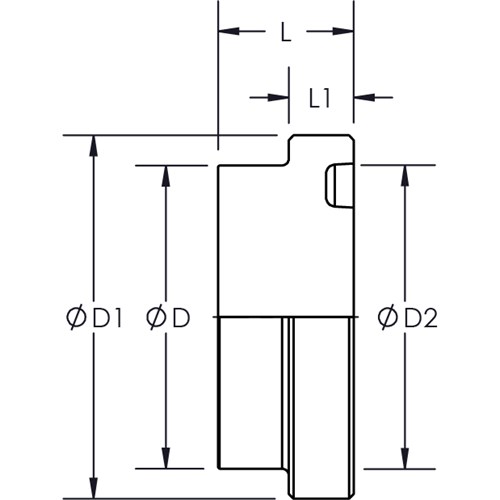

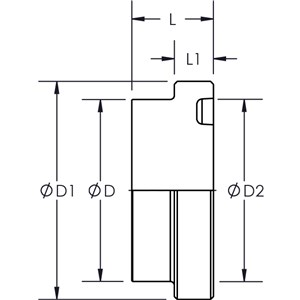

Part #
D
D1
D2
L
L1
1724X12
1.250
1.500
1.250
0.560
0.268
Quote
1724X16
1.500
1.750
1.560
0.560
0.315
Quote
1724X20
1.700
2.000
1.750
0.560
0.315
Quote
1724X24
1.980
2.375
2.115
0.620
0.315
Quote
1724X32
2.450
2.810
2.490
0.620
0.378
Quote
1724X40
2.920
3.310
2.995
0.680
0.378
Quote
1724X48
3.550
4.000
3.615
0.750
0.378
Quote
1724X8
0.940
1.188
1.000
0.500
0.268
Quote
