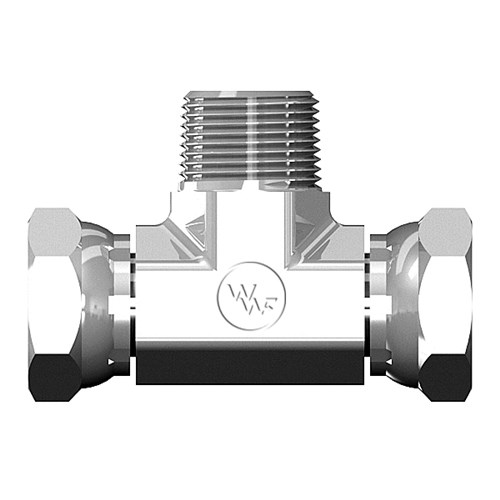

Male Pipe to Female Pipe Swivel Branch Tee
Share
Print Page
You have not viewed any products recently.
Enlarge
Attributes
Values
Product #
9605
Gates
FPX-FPX-MP
Aeroquip
2254-[R]
Parker
217T
AirWay
1601
3D Renderings
Full View
Half View
Section View
Units
ENGLISH
METRIC

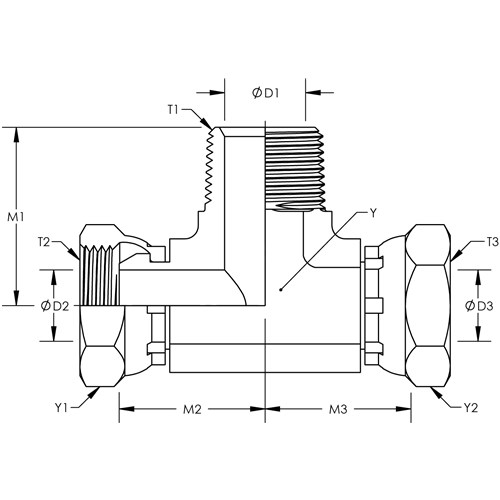

Part #
Y Hex
Y1/Y2 HEX
T1
M1
D1
D2/D3
T2/T3
M2/M3
9605X02X02X02
0.438
0.563
1/8-27
0.720
0.188
0.150
1/8-27
0.700
Quote
9605X04X04X04
0.563
0.688
1/4-18
1.090
0.281
0.220
1/4-18
0.880
Quote
9605X04X06X06
0.750
0.875
1/4-18
1.220
0.281
0.340
3/8-18
0.990
Quote
9605X06X06X06
0.750
0.875
3/8-18
1.220
0.406
0.340
3/8-18
0.990
Quote
9605X08X04X04
0.875
0.688
1/2-14
1.470
0.531
0.220
1/4-18
1.020
Quote
9605X08X06X06
0.875
0.875
1/2-14
1.470
0.531
0.340
3/8-18
1.040
Quote
9605X08X08X08
0.875
1.000
1/2-14
1.470
0.531
0.460
1/2-14
1.110
Quote
9605X12X08X08
1.063
1.000
3/4-14
1.590
0.719
0.460
1/2-14
1.240
Quote
9605X12X12X12
1.063
1.250
3/4-14
1.590
0.719
0.635
3/4-14
1.300
Quote
9605X12X16X16
1.313
1.500
3/4-14
1.780
0.719
0.831
1-11-1/2
1.540
Quote
9605X16X12X12
1.313
1.250
1-11-1/2
1.970
0.938
0.635
3/4-14
1.430
Quote
9605X16X16X16
1.313
1.500
1-11-1/2
1.970
0.938
0.831
1-11-1/2
1.540
Quote
9605X20X20X20
1.625
1.875
1-1/4-11-1/2
2.380
1.250
1.087
1-1/4-11-1/2
1.730
Quote
