Steel Beaded Hose Barbs
>

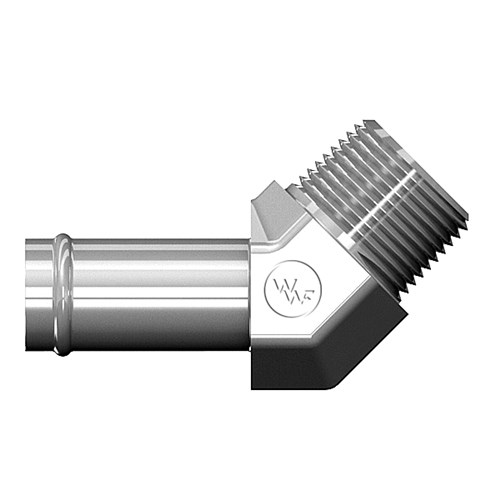

45° Male Pipe Hose Fitting
45° Male Pipe Hose Fitting
Share
Print Page
You have not viewed any products recently.
Enlarge
Attributes
Values
Product #
4503
AirWay
4503
SAE
430360

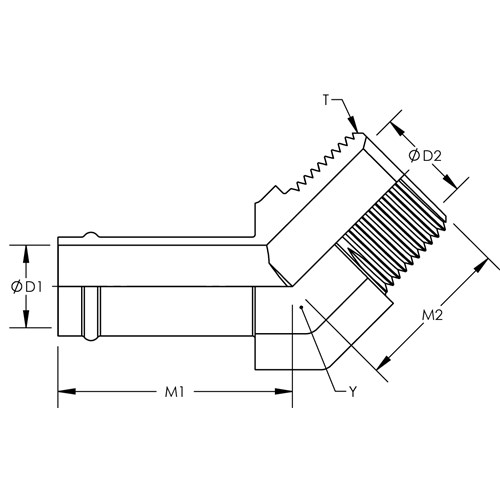

3D Renderings
Full View
Half View
Section View
Units
ENGLISH
METRIC
Part #
Y Hex
T
M1
D1
M2
D2
4503X04X02
0.500
1/8-27
1.680
0.189
0.633
0.189
