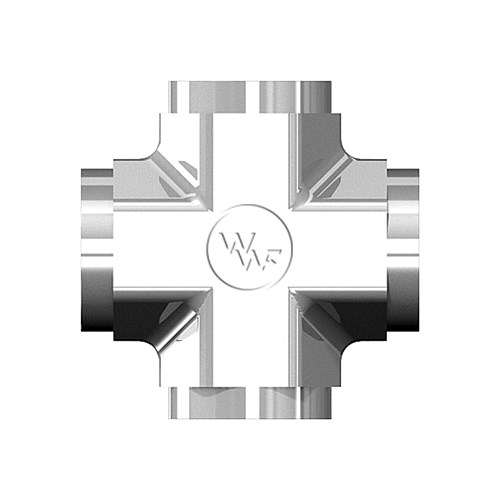

Female Pipe Cross

Share Print Page

You have not viewed any products recently.

F3959d

Enlarge

F3959d

Attributes	Values
Product #	F3959
Aeroquip	2080
Parker	KMMOO
AirWay	5652
SAE	140538
Stainless Part No	5652-SS

These values are for reference only. Availability is not guaranteed.

Units

ENGLISH

METRIC

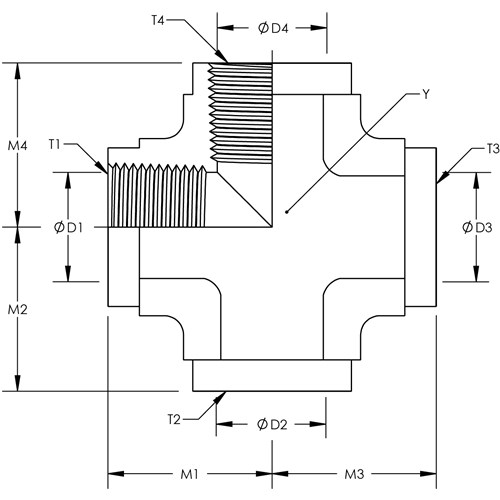

Part #	Y Hex	T1/T3	M1/M3	D1/D3	T2/T4	M2/M4	D2/D4
F3959X02X02X02X02	0.563	1/8-27	0.660	0.332	1/8-27	0.660	0.332	Quote
F3959X04X04X04X04	0.750	1/4-18	0.880	0.438	1/4-18	0.880	0.438	Quote
F3959X06X06X06X06	0.875	3/8-18	1.020	0.563	3/8-18	1.020	0.563	Quote
F3959X08X08X08X08	1.063	1/2-14	1.230	0.703	1/2-14	1.230	0.703	Quote
F3959X12X12X12X12	1.313	3/4-14	1.360	0.906	3/4-14	1.360	0.906	Quote
F3959X16X16X16X16	1.625	1-11-1/2	1.620	1.141	1-11-1/2	1.620	1.141	Quote
F3959X24X24X24X24	2.562	1-1/2-11-1/2	2.080	1.744	1-1/2-11-1/2	2.080	1.744	Quote
F3959X32X32X32X32	2.812	2-11-1/2	2.390	2.213	2-11-1/2	2.390	2.213	Quote
