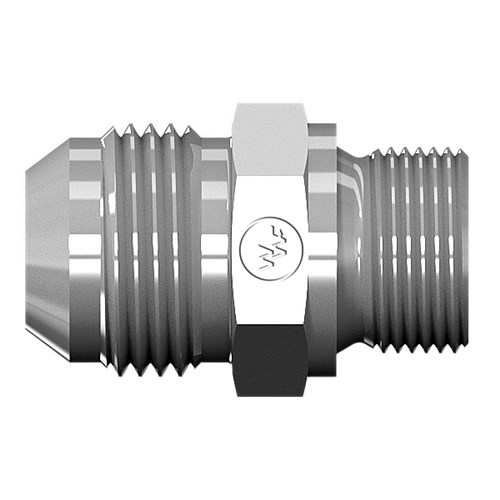

Male JIC To Male Metric Straight

Share Print Page

You have not viewed any products recently.

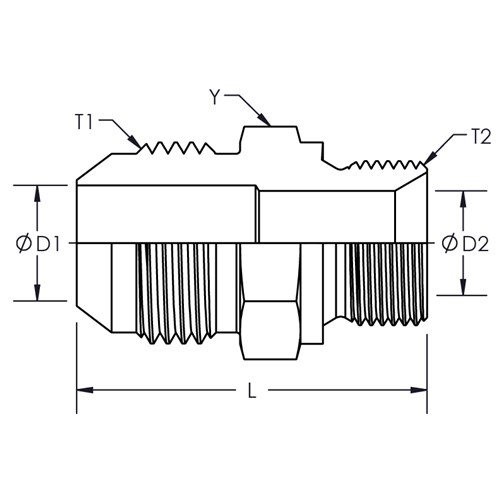

7005d

Enlarge

7005d

Attributes	Values
Product #	7005
AirWay	7005

3D Renderings

These values are for reference only. Availability is not guaranteed.

Units

ENGLISH

METRIC

Part #	Y Hex	T1	D1	T2	D2	L
7005X04X10	0.551	7/16-20	0.172	M10X1.0	0.118	1.080	Quote
7005X04X12	0.748	7/16-20	0.172	M12X1.5	0.157	1.300	Quote
7005X04X14	0.748	7/16-20	0.172	M14X1.5	0.236	1.300	Quote
7005X06X12	0.748	9/16-18	0.297	M12X1.5	0.157	1.305	Quote
7005X06X14	0.748	9/16-18	0.297	M14X1.5	0.236	1.305	Quote
7005X06X16	0.866	9/16-18	0.297	M16X1.5	0.276	1.360	Quote
7005X06X18	0.945	9/16-18	0.297	M18X1.5	0.354	1.360	Quote
7005X08X12	0.748	3/4-16	0.391	M12X1.5	0.157	1.435	Quote
7005X08X14	0.748	3/4-16	0.391	M14X1.5	0.295	1.435	Quote
7005X08X16	0.866	3/4-16	0.391	M16X1.5	0.276	1.465	Quote
7005X08X22	1.063	3/4-16	0.391	M22X1.5	0.472	1.600	Quote
7005X10X22	1.063	7/8-14	0.484	M22X1.5	0.472	1.705	Quote
7005X12X22	1.063	1-1/16-12	0.609	M22X1.5	0.472	1.850	Quote
7005X12X27	1.260	1-1/16-12	0.609	M27X2.0	0.590	1.885	Quote
